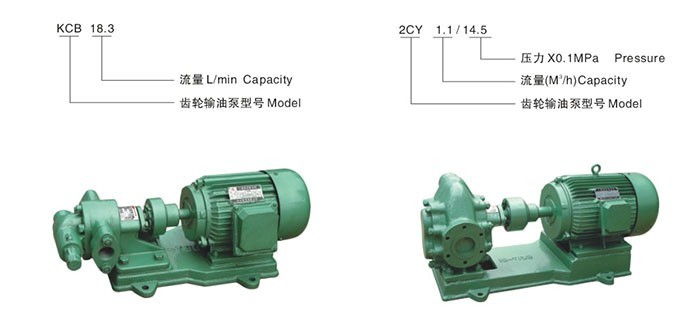

KCB、2CY型齒輪式輸油泵型號說明：

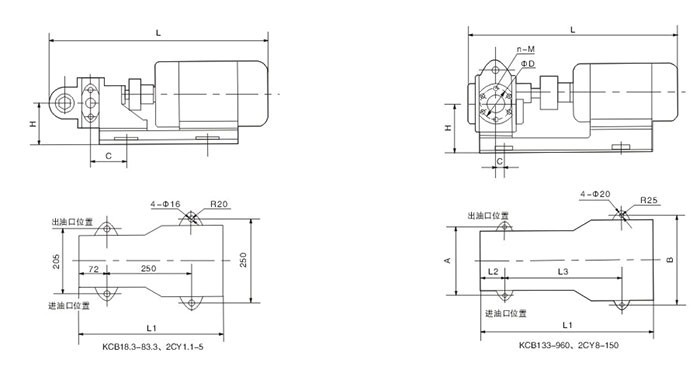

KCB、2CY型齒輪式輸油泵安裝尺寸圖：
KCB、2CY型齒輪式輸油泵用途與特征：
本泵適用于輸送粘度在300C.s.t以下的各種油類，如原油、柴油、潤滑油、動植物油等。配用銅齒輪可輸送低閃點液體，如汽油、苯等。介質溫度不超過70℃，耐高溫油泵的使用溫度不超過300℃。泵本身帶有安全閥，超載時起安全保護作用。軸封有骨架油封、機械密封、填料密封三種型式，訂貨注明。
KCB、2CY型齒輪式輸油泵性能參數：
|
型 號
|
流量
m3/h
|
壓力
MPa
|
真空度
m.H2O
|
進出口徑
mm
|
H
|
L
|
L1
|
L2
|
L3
|
A
|
B
|
C
|
D
|
n-m
|
進出口
距離
K
|
配用
電機
型號
|
功率
KW
|
|
KCB18.3
2CY1.1/14.5
|
1.1
|
1.45
|
5
|
G3/4"
|
109
|
583
|
405
|
72
|
250
|
205
|
250
|
79
|
-
|
-
|
200
|
Y90L-4
|
1.5
|
|
KCB33.3
2CY2/14.5
|
2
|
1.45
|
5
|
G3/4"
|
119
|
618
|
437
|
72
|
250
|
205
|
250
|
79
|
-
|
-
|
200
|
Y100L1-4
|
2.2
|
|
KCB55
2CY3.3/3.3
|
3.3
|
0.33
|
5
|
G1"
|
109
|
588
|
405
|
72
|
250
|
205
|
250
|
86
|
-
|
-
|
200
|
Y90L-4
|
1.5
|
|
KCB83.3
2CY5/3.3
|
5
|
0.33
|
5
|
G11/2"
|
119
|
658
|
437
|
72
|
250
|
205
|
250
|
99
|
-
|
-
|
200
|
Y100L2-4
|
2.2
|
|
KCB133
2CY8/3.3
|
8
|
0.33
|
5
|
G2"
|
182
|
778
|
688
|
130
|
450
|
250
|
340
|
32
|
-
|
-
|
260
|
Y132S-6
|
3
|
|
2CY8/6
|
8
|
0.6
|
5
|
G2"
|
182
|
818
|
688
|
130
|
450
|
250
|
340
|
32
|
-
|
-
|
260
|
Y132M1-6
|
4
|
|
2CY8/10
|
8
|
1.0
|
5
|
G2"
|
182
|
818
|
688
|
130
|
450
|
250
|
340
|
32
|
-
|
-
|
260
|
Y132M2-6
|
5.5
|
|
2CY12/1.3
|
12
|
0.13
|
5
|
G2"
|
172
|
703
|
576
|
130
|
370
|
250
|
305
|
32
|
-
|
-
|
260
|
Y112M-4
|
4
|
|
KCB200
2CY12/3.3
|
12
|
0.33
|
5
|
G2"
|
182
|
778
|
688
|
130
|
450
|
250
|
340
|
32
|
-
|
-
|
260
|
Y132S-4
|
5.5
|
|
2CY12/6
|
12
|
0.6
|
5
|
G2"
|
182
|
778
|
688
|
130
|
450
|
250
|
340
|
32
|
-
|
-
|
260
|
Y132S-4
|
5.5
|
|
2CY12/10
|
12
|
1.0
|
5
|
G2"
|
182
|
818
|
688
|
130
|
450
|
250
|
340
|
32
|
-
|
-
|
260
|
Y132M-4
|
7.5
|
|
KCB300
2CY18/3.6
|
18
|
0.36
|
5
|
70
|
187
|
898
|
723
|
120
|
480
|
280
|
340
|
45
|
123
|
6-M14
|
234
|
Y132M2-6
|
5.5
|
|
2CY18/6
|
18
|
0.6
|
5
|
70
|
242
|
983
|
912
|
155
|
600
|
280
|
380
|
30
|
123
|
6-M14
|
234
|
Y160M-6
|
7.5
|
|
KCB483
2CY29/3.6
|
29
|
0.36
|
5
|
70
|
187
|
898
|
723
|
120
|
480
|
280
|
340
|
45
|
123
|
6-M14
|
234
|
Y132M-4
|
7.5
|
|
2CY29/6
|
29
|
0.6
|
5
|
70
|
242
|
983
|
912
|
155
|
600
|
280
|
380
|
30
|
123
|
6-M14
|
234
|
Y160M-4
|
11
|
|
KCB633
2CY38/2.8
|
38
|
0.28
|
5
|
100
|
230
|
1094
|
912
|
155
|
600
|
280
|
380
|
60
|
158
|
8-M16
|
280
|
Y160L-6
|
11
|
|
2CY38/6
|
38
|
0.6
|
5
|
100
|
286
|
1224
|
943
|
150
|
650
|
360
|
360
|
65
|
158
|
8-M16
|
280
|
Y200L2-6
|
22
|
|
KCB960
2CY60/3
|
60
|
0.3
|
5
|
100
|
230
|
1159
|
955
|
155
|
650
|
280
|
410
|
60
|
158
|
8-M16
|
280
|
Y180L-4
|
22
|
|
2CY100/3
|
100
|
0.3
|
5
|
150
|
440
|
1586
|
1325
|
110
|
550×2
|
450
|
450
|
-20
|
210
|
8-M16
|
400
|
Y250M-8
|
30
|
|
2CY100/6
|
100
|
0.6
|
5
|
150
|
465
|
1856
|
1536
|
138
|
420×3
|
600
|
600
|
8
|
210
|
8-M16
|
400
|
Y315S-8
|
55
|
|
2CY120/3
|
120
|
0.3
|
5
|
150
|
440
|
1586
|
1325
|
110
|
550×2
|
450
|
450
|
-20
|
210
|
8-M16
|
400
|
Y250M-8
|
30
|
|
2CY120/6
|
120
|
0.6
|
5
|
150
|
465
|
1856
|
1536
|
138
|
420×3
|
600
|
600
|
8
|
210
|
8-M16
|
400
|
Y315S-8
|
55
|
|
2CY150/3
|
150
|
0.3
|
5
|
150
|
460
|
1696
|
1376
|
138
|
550×2
|
500
|
500
|
8
|
210
|
8-M16
|
400
|
Y280S-8
|
37
|
|
2CY150/6
|
150
|
0.6
|
5
|
150
|
465
|
1946
|
1536
|
138
|
420×3
|
600
|
600
|
8
|
210
|
8-M16
|
400
|
Y315M1-8
|
75
|
1、表中參數為50℃,30C.S.t粘度條件下的數值。
2、KCB18.3～200、2CY1.1～12配帶管螺紋口的腰形法蘭；KCB300～960、2CY18～150不配帶法蘭，需用戶自行加工。
